Step-by-Step Installation of Oracle Solaris 11 SPARC
Ensure that
your hardware supports Oracle Solaris 11 Operating System. If you are unsure,
please visit the below URL and check the compatibility list:
http://www.oracle.com/webfolder/technetwork/hcl/data/s11ga/index.html
You can
download Solaris 11 operating system iso image here:
http://www.oracle.com/technetwork/server-storage/solaris11/downloads/index.html
Select
‘Download for SPARC – Text Install’. Please check MD5 checksun to ensure the
downloaded file is not corrupt. After having downloaded this image, please
write it to DVD using any ISO burner (such as Free ISO Burner).
Connect to
the system console either via ILOM, ALOM, XSCF etc through serial cable or SSH
over the network in case of remote management configured. Login to the console,
in my example a T2000 machine has been used.
On SC prompt
type console –f and console respectively and hit enter. You will now get OK
prompt, if you powered on the server. Please note, you cannot do a version
upgrade from Solaris 10 to Solaris 11. There are several differences in these
two versions, many features are now obsolete. Solaris 11 has to be a fresh
install.
Make sure
Solaris 11 DVD is inserted in the DVD drive. Now type boot cdrom on OK prompt to begin installation as shown in the
below screenshot:
The
pre-installation phase or requirements gathering phase will being. Oracle
Solaris 11 will ask several questions with options to you. The first step is to
select the keyboard layout of your choice. Defaut keyboard layout for Oracle
Solaris 11 installation via DVD is US-English.
Next, select the language of your choice, default installation language for
Oracle Solaris 11 is English.
Next step
will give you an option to Install Oracle Solaris. If you are using a remote
ssh session on shell, I would rather select 4 Terminal type and specify the
correct terminal type I am using, in order for me to have a aligned display of
the installation screens. The next page will give you further details about
this.
Select
option 4 and select the correct terminal type. vt100 is your best if you are
unsure about what terminal type are you using. While installing Oracle Solaris
11, the screen type chosen here will help you a lot.
Select 1 to
install Oracle Solaris 11. As you can see 1 is the default value, hence you can
just press enter/return key here.

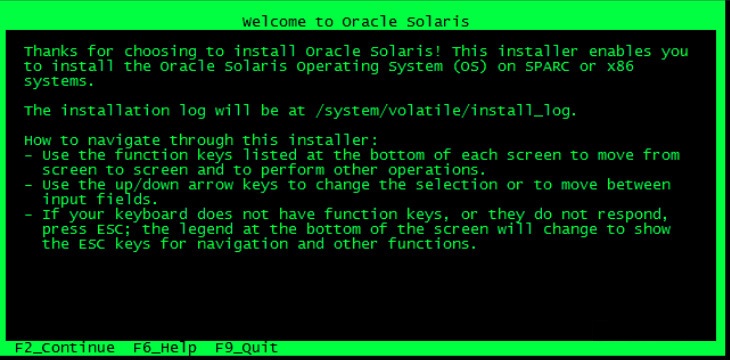

Next screen
will show you the location of installation log, which is
/system/volatile/install_log.
Remember,
from here until completion of install Oracle Solaris 11, you can move to
forward screen by pressing F2 or to quit you can press F9.
After you
are on next screen of Solaris 11 installation, you will have the disk option,
disk where Oracle Solaris 11 will be installed. Very important point to note
and also, a considerable difference from Solaris 10 to Solaris 11 is noticed in
this step. Solaris 11 is installed on rpool. Yes, zfs is the default file
system of Oracle Solaris 11. To remind you, Solaris 10 has UFS as default file
system.
Select the desired disk, I would recommend a whole disk for the installation,
however, you have the option to install it on a single slice.
Now, Oracle
Solaris 11 installer will give you option to choose a hostname. Type any name
that you want. If you want to change it later, you can change hostname from
Solaris 11 operating system once the system is fully installed. The default
name is solaris.
You will
also get options to choose from regarding how would you like to setup
networking on the machine. If you are using DHCP you can select ‘Automatically’
or if you know the IP address, netmask value and gateway address, you can
select Manually and provide these details for an interface to be plumbed and IP
configured. Alternatively, if you are experienced with Oracle Solaris 10, you
can choose ‘None’ to manually plumb and configure network interface later,
after the Operating System is installed.
Next screen is to select time zone:
Now select location that contains your time zone, press F2 to continue:
Select Time Zone based on your location or preference:
Next screen to set password for root and user account for yourself.
Next screen is Installation summery, verify and press F2 if everything correct.
Installation will take around 15 to 20 minutes to complete. Here you can see
installation progress.
Installation completed, press F8 to reboot.
